The top weight causes vibration in the horizontal plane which causes the material to move across the screen towards the periphery. The lower weight acts to tilt the machine which causes vibration in the vertical tangential axis. The angle of lead of the lower weight with relation to the upper weight provides variable control of the screening pattern. Thus, the material moves across the screens and also in the vertical and tangential planes enabling maximum screening.

KEY FEATURES

Noiseless, Maintenance free & high speeds.
Available in various models providing screening diameter of 12″, 20″, 30″, 36″, 48″.
Portable and compact.
Electric power requirement less than other machine of the kind in the industries & lower energy.
Consumption compared to reciprocating vibratory system.

All contact parts and screen of SS 316 AISI stainless steel material.
Easy dismantling and cleaning facility for contact parts.
Wide range of screen sizes 4-300 Mesh.
Double & Triple deck screens with outlet and hopper for bottom deck available on request
Standard machines are with TEFC motor explosion proof/flame proof motor material.

Description Models	MODEL
MM OCB-5	12”	20”	30”	36”	48”
Screen Dia in mm	304	508	762	914	1200
Cap/hr	10 to 50 Kg	20 to 140 Kg	100 to 250 Kg	300 to 400 Kg	400 to 500 Kg
Vibro Motors	0.19 HP	0.25 HP	0.5 HP	1 HP	1.5 HP

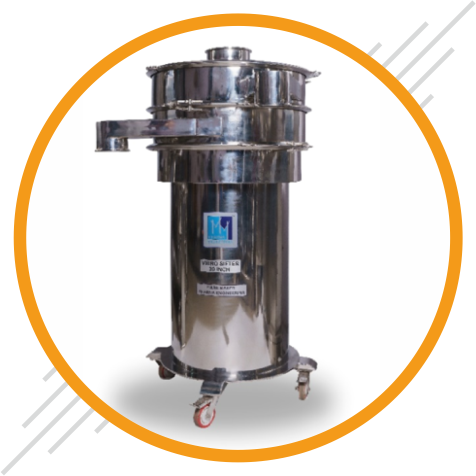

VIBRO SHIFTER
