LIFTING AND TILTING DEVICE

Mark Maker has produced more than 100 Fluid Bed Bowl Inverters, making us the industry leaders in such technology.

We are also Masters at integrating mills and screeners into the machines for a one-step process saving substantial process time and increasing GMP by keeping the process totally enclosed.

It provides completely dust free operation and eliminates tedious scooping or manual handling.

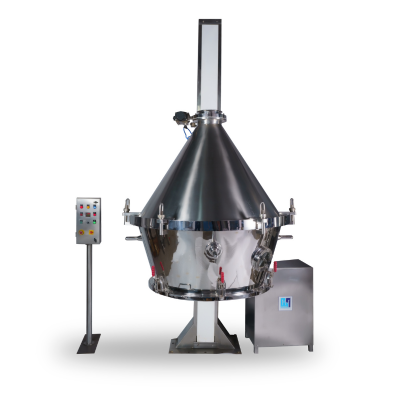

lifting-and-tilting-device Machine

MATERIAL HANDLING OPTIONS

Integrated Mill
Funnel angles 60 °, 90° or as required./li>
Column with slewing system (pivoting)

Rotary Valve or Butterfly Valve on outlet for controlled discharge
Powered or manual funnel locking and sealing system
Static or inflatable seal on funnel

DESIGN CAPABILITIES

Lifting capacity to 500 kg
Lifting heights to 60″
Overhang (reach) to 12″
Can be free standing, hung from the ceiling or attached to both ceiling and floor
Funnel diameters to 60″
Explosion proof for all classes and divisions

Cleanroom ready to Class 100
Full washdown
Stainless steel 304 or 316
Any level of finish
Controls offered from simple pneumatic to fully automated PLC/HMI operation
100% customizable for any possible application
