Designed for high productivity, 1 Million Effervescent Tablets per shift.

Faster output where tube filling of huge effervescent tablet batch size required that too without any rejection.

The most advanced electromechanical technology from Mark Maker’s Effervescent packaging range to convert your “Productivity to Profitability”.

Max. 10,00,000 tablets per shift.

Technology, so fast and ergonomic

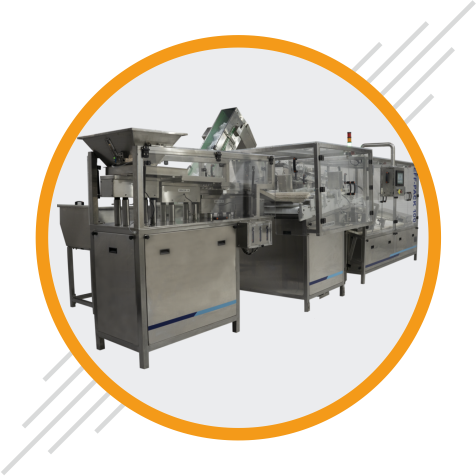

The EFF-PACK 100 is fully automated tube filling machine with capacity of 100 to 120 tubes per minute.
Quick Changeover, ideally good for fixed diameter tablets.
A modern PLC is used to control and monitor the complete process, as per 21 CFR Part 11.

Continuous motion ensures gentle treatment of the tablets with high filling speed.
Nitrogen flushing to safeguard tablets from the moisture.

Key Features

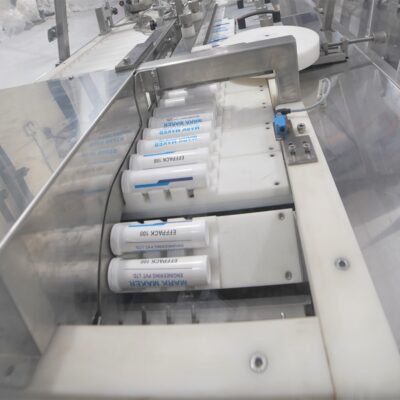

Continuous filling and sealing conveyor, made up of high quality Delrine flats to make it more compatible with the products. It is highly durable, ensures no breakages of tablets, provides resistance to creep and easy to clean.

Filled OK tube with total production count for monitoring batch sizes easily.

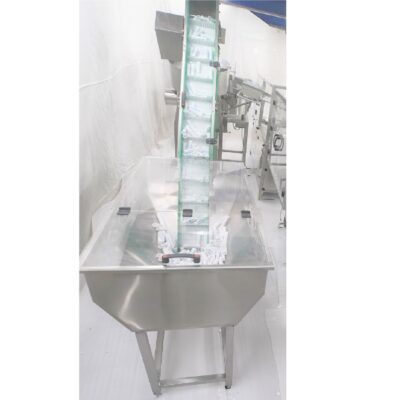

Ergonomically designed tube elevator for ease of operation and maximize productivity.

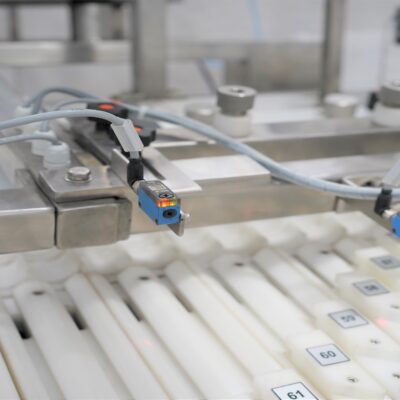

Laser sensors to monitor accuracy and precision of the operations.

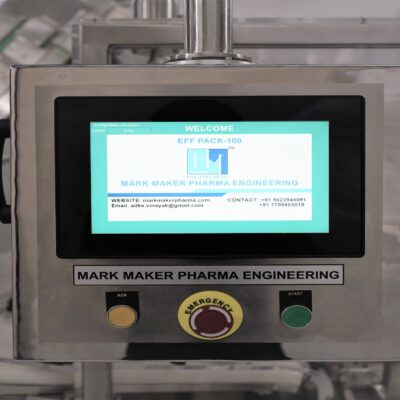

Centralized operating panel with 10” soft touch HMI.

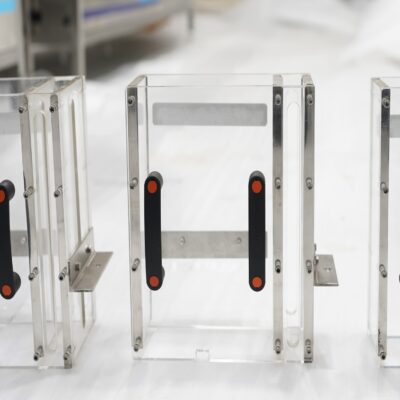

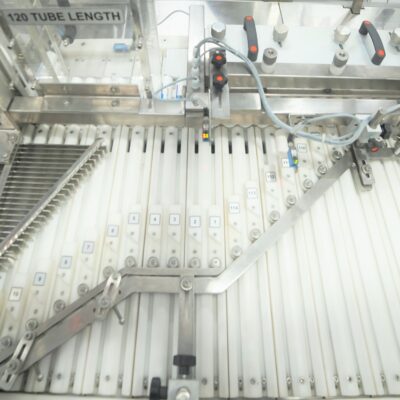

Interchangeable tube boxes for various tube lengths. Easy to change.

technical specifications

Capacity:	8,00,000 to 10,00,000 tablets per shift
Filling Speed:	100 to 120 tubes per minute
Packaging Type:	Polypropylene and Aluminum
Machine Type:	Continuous Automatic
Machine connecting load:	11 Kw
Machine weight:	Approx. 1,000 Kgs.
Tube length handled:	80 to 180 mm
Tablet diameter:	18 to 30 mm
Tablet Thickness:	4 to 8 mm

EFF-PACK 100

Designed for high productivity, 1 Million Effervescent Tablets per shift.

Technology, so fast and ergonomic

Key Features

technical specifications

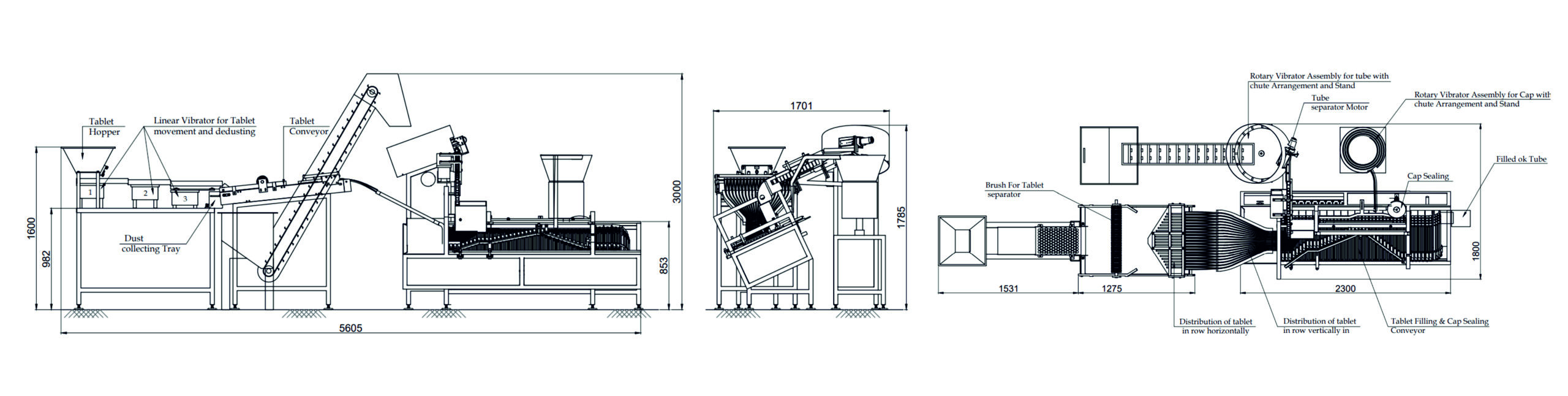

machine layout
