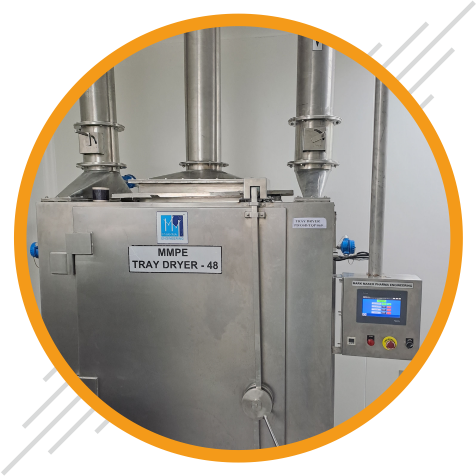

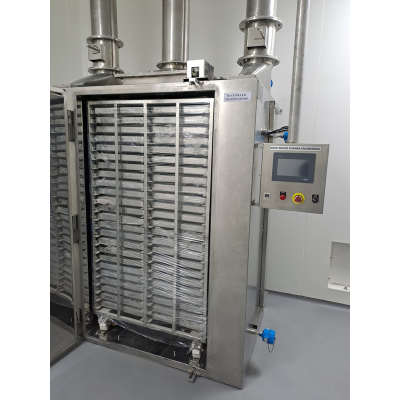

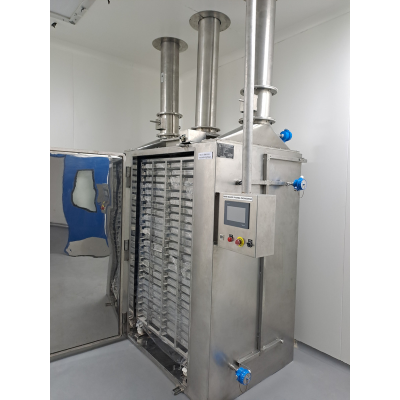

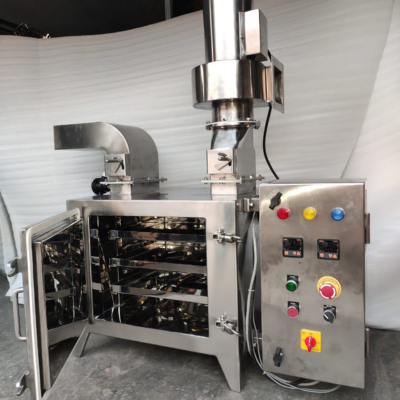

Tray Dryers are one of the best equipment for drying results in conventional process.

Specially designed for drying Bulk Drug, Pharmaceuticals product, Chemicals, Food, Paints, Textiles & other industries. It is well accepted by industry for drying of powder, granules, food material & chemicals.

Hot air flow is transferred in to the oven via hot air circulation by a stream in a radiator coil or electric heater. The transfer of heat by hot air, as well as the proper circulation of the heat, is facilitated by the installed blower fans.

KEY FEATURES

Double Wall Design.
A rigid S.S. frames.
Glasswool Insulated
Specially designed locking system for easy tightening of the door.
Electric and steam heating sources are used for uniform drying.

Air Inlet and Air Filter Unit.
Recirculation of hot air to reduce the utility cost and fast drying.
Glass Pan door for Process monitoring.
Flexible Damper (Outlet).
With On/Off Push Buttons and Indicating Lamps, Sophisticated Control Panel for temperature control as well as other parameters fixed outside the equipment and assist in it’s functioning. OrWith optional HMI operating panel.

Machine	R&D	Production
Model	ATD 3 – 12	ATD 24	ATD 36	ATD 48	ATD 72	ATD 96
Capacity	9-36 Kg	72 Kg	108 Kg	144 Kg	216 Kg	288 Kg
Inlet Blower Motor	0.5	1/1	2/1	5/2	5/2	7.5/5
Heating Arrangement	Through Electrical Heater / Steam Coil
