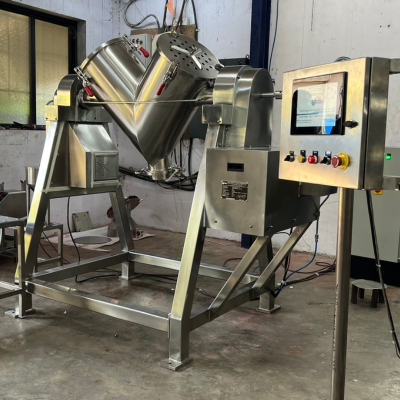

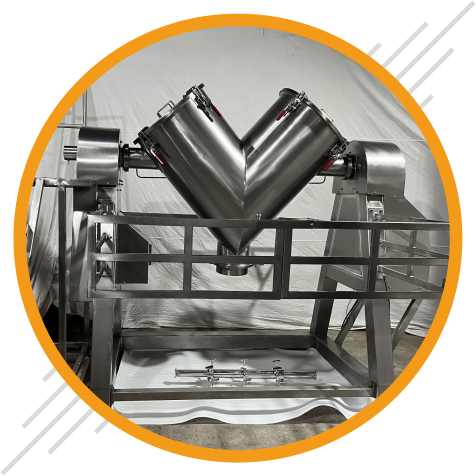

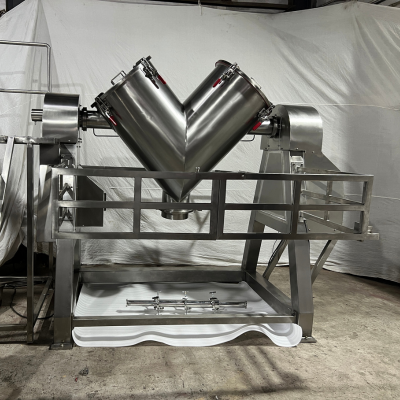

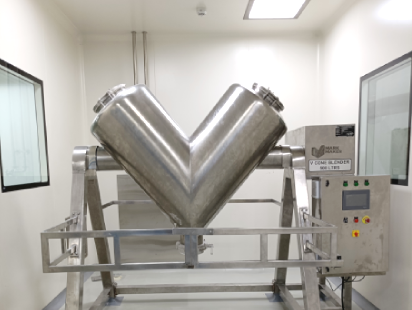

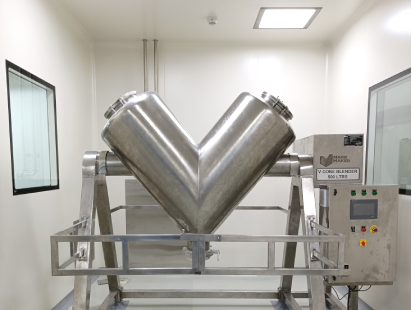

V-CONE BLENDER:

V- Cone Blenders are used for dry mixing. It provides efficient blending in a short time.

This blender is often used for pharmaceuticals.

V-Blenders are generally used for Food products, Milk powder, and Dryflavors. Pesticides and Herbicides, Animal feed, Spice blends, Baby foods, and Cosmetics.

As revolutions per minute increase, the centrifugal forces at the extreme points of the blender will exceed the gravitational forces required for mixing.

As a result, the powder must tend to gravitate toward the outer walls of the blender casing. As the size of the blender increases, the rotational speed generally decreases in proportion to the peripheral speed of the blender extreme. V-Blenders are designed to operate between 50% and 80% of the critical speed.

KEY FEATURES

Contact part SS 316 & Non-Contact part SS 304.
Rotating V type shell with large capacity
Easy loading & un-loading
Special baffles to increasing mixing shear
Near complete discharge of product material integrated vacuum loading option available
No product contamination
21 CFR Part 11 compliant controls

Easy to clean with internal attachments like lump breakers and liquid dispensers
Safety railings with limit switch for instant stop.

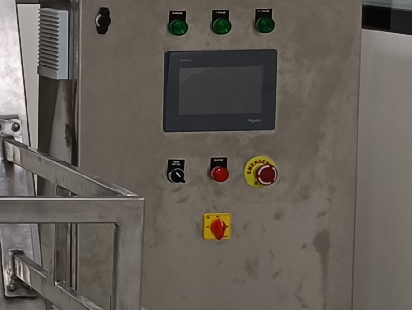

Optional with extra cost HMI & PLC control Panel
cGMP design for ease of cleaning.
Industrial PC’s SCADA Based
Explosion proof / Flame Proof
CE Certified.

DOUBLE CONE BLENDER

MODEL	Gross Capacity in (Ltrs)	Working Capacity in (Ltrs)	Motor HP
MM OCB-5	5	4	1
MM OCB-10	10	8	1
MM OCB-15	15	12	1
MM OCB-25	25	20	1
MM OCB-50	50	40	1.5
MM OCB-75	75	60	2
MM OCB-100	100	80	2
MM OCB-150	150	120	2
MM OCB-250	250	200	2
MM OCB-400	400	320	3
MM OCB-500	500	400	3
MM OCB-750	750	600	3
MM OCB-1000	1000	800	5
MM OCB-1250	1250	1000	5
MM OCB-1500	1500	1200	7.5
MM OCB-2000	2000	1600	10
MM OCB-3000	3000	2400	10
MM OCB-5000	5000	4000	15
