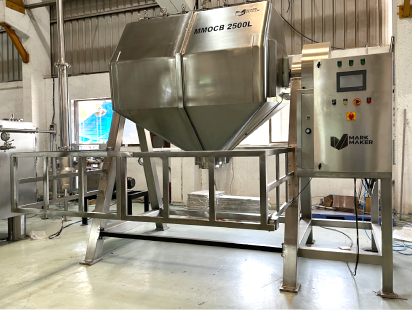

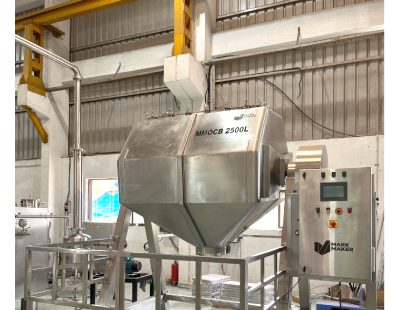

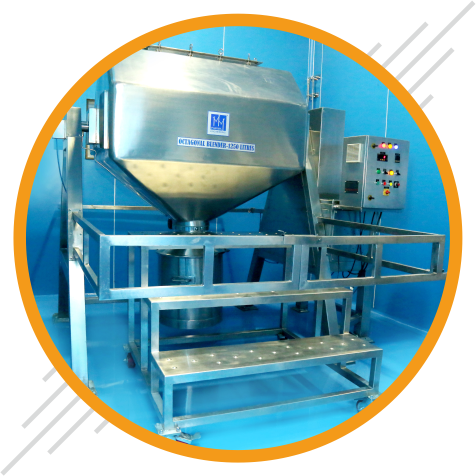

Octagonal shape is designed to process larger volume of material.

The material to be mixed is charged in machine either manually from top or bin charging system or vacuum charging system and then the port is locked positively. Then blender is started to pre-set blending time.

Dust free charging system is also incorporated, which is a completely closed system for charging and discharging of powders or granules. The power consumption is comparatively lower than other similar type of blenders.

KEY FEATURES

All Contact Parts are SS 316/ SS 316L
All Non-Contact Parts are SS 304.
Material handling in Octa Blender is through Bin charging or a Vacuum charging system.
Bin charging system ensures Dust free closed system for Charging and Discharging of Product.
Mechanical rail provided on the unit. Gate footprint to suit the turning radius of the blender body.Single railing in front which opens by lifting, with Limit switch/Safety switch interlock.
Slow speed Blender with Gentle blending of Dry granule.
cGMP design for ease of cleaning.
CE Certified.

Optional in built in Vacuum design. No external PTS required.

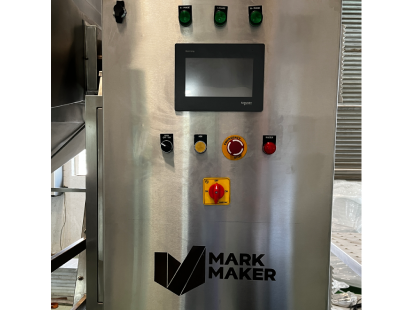

Optional HMI & PLC control panel
The baffles are eliminated with blending profile analysis available.
Pneumatically actuated valves for dust free transfers.
Bins with Level sensory for automatic cut off.
Mechanical Seals on shafts for Pneumatic connections.
Industrial PC’s SCADA Based
Explosion proof / Flame Proof
21 CFR Part 11 compliant controls

OCTAGONAL BLENDER SPECIFICATION

MODEL	Gross Capacity in (Ltrs)	Working Capacity in (Ltrs)	Motor HP
MM OCB-5	5	4	1
MM OCB-10	10	8	1
MM OCB-15	15	12	1
MM OCB-25	25	20	1
MM OCB-50	50	40	1.5
MM OCB-75	75	60	2
MM OCB-100	100	80	2
MM OCB-150	150	120	2
MM OCB-250	250	200	2
MM OCB-400	400	320	3
MM OCB-500	500	400	3
MM OCB-750	750	600	3
MM OCB-1000	1000	800	5
MM OCB-1250	1250	1000	5
MM OCB-1500	1500	1200	7.5
MM OCB-2000	2000	1600	10
MM OCB-3000	3000	2400	10
MM OCB-5000	5000	4000	15
