Engineered Solutions for Safe & Controlled Powder Transfer

At Mark Maker Engineering, we design and provide safe transfer solutions for the controlled movement of pharmaceutical powders and materials between process equipment.

Our transfer systems are developed to support both continuous powder transfer and intermediate powder transfer, helping maintain controlled material flow while reducing manual handling, product exposure and the risk of cross-contamination.

Explore Portfolio Integrated Flow Consult an Engineer
Continuous & Intermediate Flow
Hydraulic & Electric LPD Systems
Split Butterfly Valves & RTP
Zero Cross-Contamination
Material Handling Platform

Lifting & Positioning Device (LPD)

Lifting and Positioning Device with IPC Bin
Payload Capacity Up to 2,000 kg
Lifting Stroke 1.5 m to 5.0 m
Column Rotation Up to 360° Hydraulic Slew
Contact Metallurgy SS 316L / SS 304 Clad

Transfer Systems Portfolio

Complete Safe Transfer Portfolio

Depending on your process requirements, material characteristics, equipment configuration and containment strategy, we provide tailored continuous and intermediate powder transfer technologies.

STAGE 01 Lifting & Positioning
Lifting and Positioning Device (LPD)
Up to 2,000 kg 1.5m – 5.0m Stroke

Lifting & Positioning Devices (LPD)

Designed to safely raise and accurately position bins, containers, or process equipment at the required height for material transfer. Integrated with process equipment to facilitate controlled charging and discharging while reducing manual handling.

Available Models & Configurations
Fixed Column LPD → Mobile Floor Lifter Swivel Arm Elevation Unit
  • Heavy-duty electro-hydraulic or electromechanical lead-screw lifting column
  • 360-degree slew rotation with positive locking pin detents at process stations
  • Dual-channel hydraulic fail-safe check valves and mechanical anti-drop pawls
  • Sanitary SS 304 column enclosure with concealed internal cabling and hoses
STAGE 02 Tipping & Discharge
Lifting and Tipper Device
180° Inversion Controlled Incline

Lifting & Tipper Devices

Engineered for controlled lifting and tipping of powder containers, drums, or intermediate process containers into receiving equipment. Configured according to container size, payload, discharge elevation, and process requirements.

Available Models & Configurations
Drum Tipper Assembly → Lifting & Tilting Device (LTD) → IPC Bin Tipper Blender Charging Tipper
  • Smooth hydraulic 180° inversion with adjustable discharge angle control
  • Integrated cone clamping ring with dust-tight silicone seal interface
  • Pneumatic vibrator discharge aid to prevent bridging of cohesive powders
  • Comprehensive physical safety cage with interlocked access doors
STAGE 03 Aseptic Barrier Interface
Rapid Transfer Port (RTP)
Alpha-Beta Double Door 105mm – 270mm

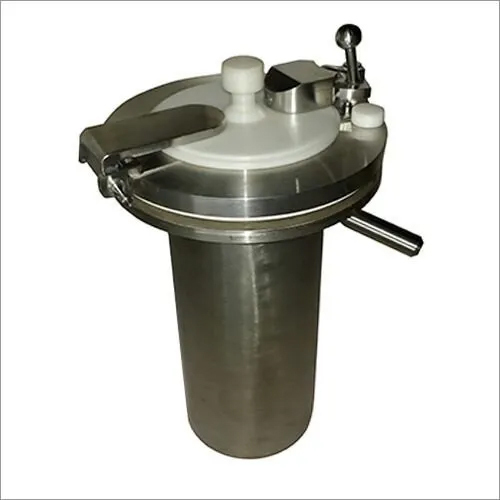

Rapid Transfer Port (RTP)

Provides a controlled interface for transferring materials or components between enclosed environments while maintaining strict separation between the process and surrounding room. Can be integrated with isolators and controlled cleanrooms.

Available Port Diameters
RTP 105 mm Alpha/Beta RTP 190 mm Port RTP 270 mm High-Flow
  • Alpha door mounted on isolator/cleanroom wall with Beta container mating flange
  • Mechanical interlock preventing door opening unless both parts are fully coupled
  • Precision lip seals preventing environmental ingress during rotation and transfer
  • Autoclavable Beta canisters for sterile accessory and component transfers
STAGE 04 Contained Valve Docking
Split Butterfly Valve (SBV) System
Active/Passive Docking Sub-Microgram Seal

Split Butterfly Valve (SBV)

Split Butterfly Valve systems provide a contained connection between two process components, allowing material transfer while maintaining complete containment. Particularly suited for high-potency APIs and cross-contamination sensitive powders.

Available Valve Configurations
Manual SBV (100–250mm) Automated Pneumatic SBV Extraction Shroud SBV
  • Active valve mounted to process vessel docks with passive valve on IPC bin
  • Mating discs lock face-to-face, ensuring product never contacts external surfaces
  • Optional vacuum extraction ring reducing airborne dust below nanogram levels
  • Sanitary SS 316L metallurgy with FDA-approved EPDM / silicone elastomeric seals
STAGE 05 Automated Docking
Powder Transfer System (PTS)
Inflatable Seal Dust-Tight Docking

Powder Transfer System (PTS)

Automated pneumatic docking stations clamp receiving ports to discharging IPC bins or blender discharge valves, inflating an elastomeric seal to ensure 100% dust-tight containment during gravity drop.

Available Docking Systems
Powder Transfer System (PTS) → Pneumatic Lift & Seal Collar Blender Charge Station Tablet Press Docking Unit
  • Pneumatic lift cylinders raising the docking head to firmly mate with container flange
  • Inflatable silicone seal expanding to form a hermetic, pressure-tight barrier
  • Pressure sensor interlocks verifying seal integrity before allowing valve opening
  • CIP/WIP wash connection port for automated washing between product campaigns
STAGE 06 Intermediate Powder Transfer
Intermediate Process Container (IPC) Bins
50L – 2,500L SS 316L Mirror Finish

Intermediate Process Containers (IPC Bins)

For processes where material needs to be collected, temporarily contained, positioned or transferred between different process stages, our IPC bins provide sanitary, dust-free intermediate powder containment.

Available Bin Formats
Square IPC Bin (100L–2000L) → Cylindrical Conta Bin Asymmetric Discharge Cone Bin
  • Steep 60-degree cone angle ensuring mass powder flow without bridging or rat-holing
  • Certified sanitary SS 316L internal construction with Ra < 0.4 µm mirror finish
  • Stackable framework with forklift guides and anti-static cleanroom castor wheels
  • Zero-dead-leg silicone butterfly valve with sanitary quick-release triclamp

Material Flow Architecture

Integrated Powder Transfer Systems

Our transfer solutions are engineered around the complete process rather than treating material transfer as a standalone operation.

A typical integrated process connects:
Material Preparation → Sifting → Granulation → Drying → Blending → Milling → Coating with controlled transfer interfaces between individual process stages.

Safe Transfer. Controlled Process. Reduced Exposure. We connect pharmaceutical equipment to create a safer and more efficient material-flow pathway across the plant.

01

Zero Cleanroom Dust Release

Hermetic docking ports and closed vacuum pipelines prevent powder plumes, keeping cleanroom airborne particulate well within ISO class limits.

02

Ergonomic & Safe Operation

LPD lifters and tippers eliminate manual heavy drum handling, reducing operator strain and preventing repetitive injury risks.

03

Containment Integration Ready

Transfer technologies interface seamlessly with barrier isolators, gloveboxes, and RABS using Split Butterfly Valves and RTP connections.

04

Sanitary CIP / WIP Cleanability

Crevice-free SS 316L contact metallurgy with quick-release triclamps and integrated wash-in-place ports ensuring rapid turnaround.

Core Standards

Engineered for Transfer Excellence

Our transfer equipment is designed with operator safety and contamination control at the forefront, complying with international cGMP and OSHA standards.

Zero Dust Emission Standards

Sealed flow paths prevent powder emissions, protecting operators and preventing cross-contamination between adjacent processing areas.

SS 316L Contact Metallurgy

Product contact surfaces crafted from SS 316L with Ra < 0.4 µm mirror finish, ensuring high flowability and zero residue adhesion.

Hydraulic & Mechanical Safety Arrestors

Dual-redundant hydraulic velocity fuses and mechanical anti-fall ratchet pawls preventing container descent under any power loss.

Inflatable Gasket Docking

Pneumatic silicone seals expanding to create airtight connections during charging into RMG, FBD, blenders, and tablet presses.

Active-Passive Docking Interlocks

Mechanical keys prevent valve rotation unless the active and passive halves are fully coupled and hermetically clamped.

cGMP Cleanroom Shrouds

Full stainless steel shrouds covering all motor drives, hydraulic power packs, and chains, meeting Grade C and Grade B cleanroom standards.

Structural Load Verification

Every lifting system undergoes 125% static and dynamic load testing with deflection verification prior to factory acceptance certification.

Full Validation Package (DQ/IQ/OQ)

Turnkey qualification documentation covering mechanical tolerances, limit switch interlocks, hydraulic schematics, and material test reports.

Application Engineering

Built Around Your Material & Facility Layout

There is no single transfer technology suitable for every pharmaceutical process. The appropriate system depends on the material characteristics, process sequence, batch size, equipment arrangement and containment requirements.

Mark Maker Engineering develops transfer solutions based on actual process and equipment interface requirements, with careful consideration for elevation, bin geometry, operator safety, and automation.

Discuss Your Transfer Requirements Browse Handling Products

Technical Matrix

Transfer Equipment Overview

Quick reference specifications across our powder transfer and lifting machinery platforms.

Equipment Models Available Capacity Range Core Mechanism Contact Metallurgy
Lifting & Positioning (LPD) LPD-500 to LPD-2000 500 kg – 2,000 kg Electro-hydraulic / mechanical column lift SS 304 Clad / SS 316 Contact
Lifting & Tipper Device LTD-300 to LTD-1500 300 kg – 1,500 kg Hydraulic 180° inversion with cone clamp SS 304 / SS 316L
Rapid Transfer Port (RTP) RTP-105 / 190 / 270 Component & Tool Pass Alpha-Beta double door interlock SS 316L / PEEK
Split Butterfly Valve (SBV) SBV-100 to SBV-250 High-Potency Flow Active/Passive dust-tight mating disc SS 316L / Silicone / EPDM
Pneumatic Docking Station PDS-150 to PDS-300 Automated Flange Mate Pneumatic lift with inflatable seal ring SS 316L / Silicone
Powder Transfer Systems (PTS) VCS-200 to VCS-1500 200 kg/hr – 2,500 kg/hr Dense / dilute phase pneumatic vacuum SS 316L (Ra < 0.4µm)
Intermediate Process Container (IPC) IPC-50 to IPC-2500 50 Liters – 2,500 Liters 60° hopper cone with sanitary butterfly SS 316L Mirror Polish
Dynamic Cleanroom Passbox DPB-600 to DPB-1000 Grade A Airlock HEPA H14 laminar airflow with interlock SS 304 / Toughened Glass

Safe Transfer Solutions by Mark Maker Engineering

Lift. Position. Transfer. Dock. Connect.

One material handling partner. Controlled process. Reduced exposure. Contact our engineers to configure an integrated powder transfer system for your facility.

Request a Proposal Email Technical Team
