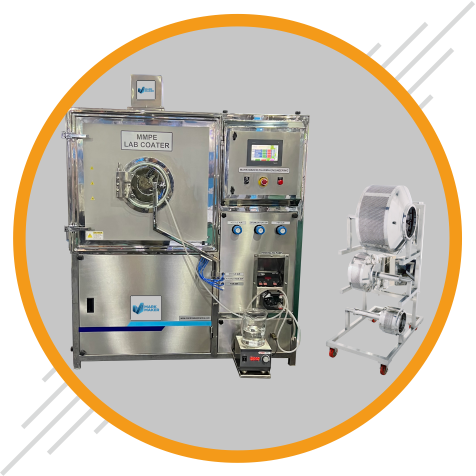

Tablet Coating
LAB & PILOT EQUIPMENT
- Inbuilt AHU with HEPA Filter
- Electrical heaters to maintain defined temperature
- Inlet and outlet air controlled through VFD driven blowers with CFM sensors.
- Magnetic mixer with glass beaker.
- A modern PLC is used to control and monitor the complete process, as per 21 CFR Part 11.
- Toolless changeover with various interchangeable pans and plenums
- De-humidifier to maintain Relative Humidity (optional)
MODEL | MMPE AC-8″ | MMPE AC-12″ | MMPE AC-18″ | MMPE AC-24″ | |
|---|---|---|---|---|---|
Pan Dia | 200MM | 300MM | 450MM | 6000MM | |
Pan Mouth Dia | 150MM | 150MM | 200MM | 200MM | |
Working capacity | 0.15KG | 500GM
TO 800GM
| 2KG
TO 4KG
| 4KG
TO 12KG
| |
Pan Drive Motor | 1 HP | ||||
Inlet Blower Motor | 1 HP | ||||
Outlet Exhaust Blower | 1 HP | ||||
Heating Arrangement | Through Electrical Heater / Steam Coil | ||||
