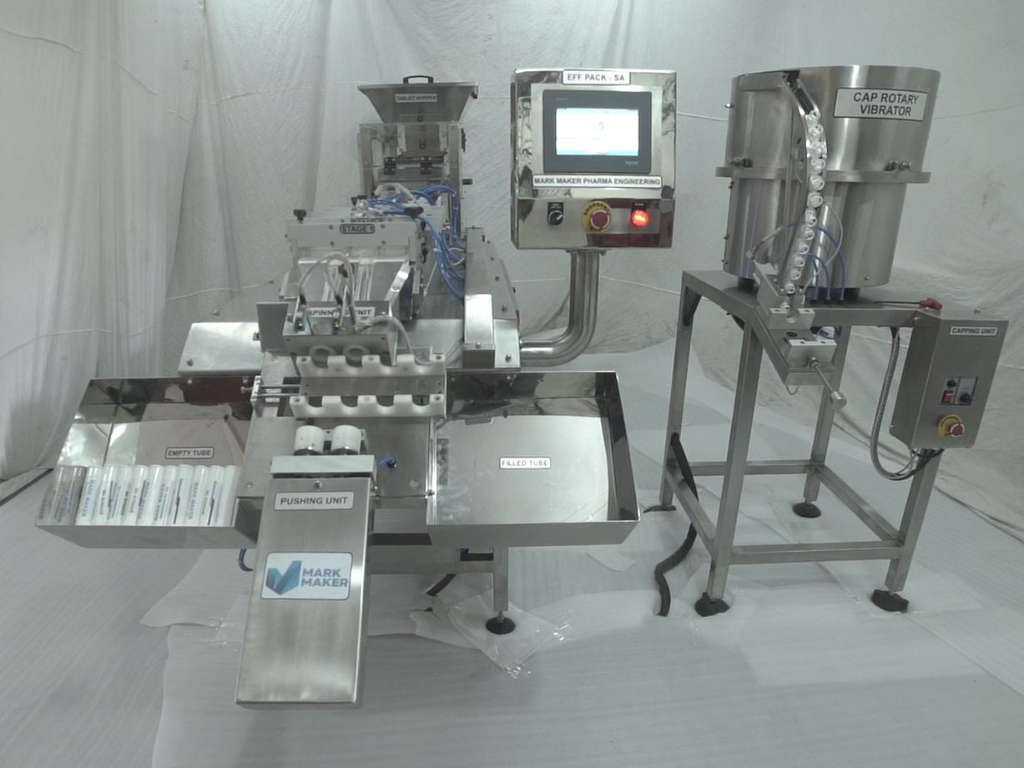

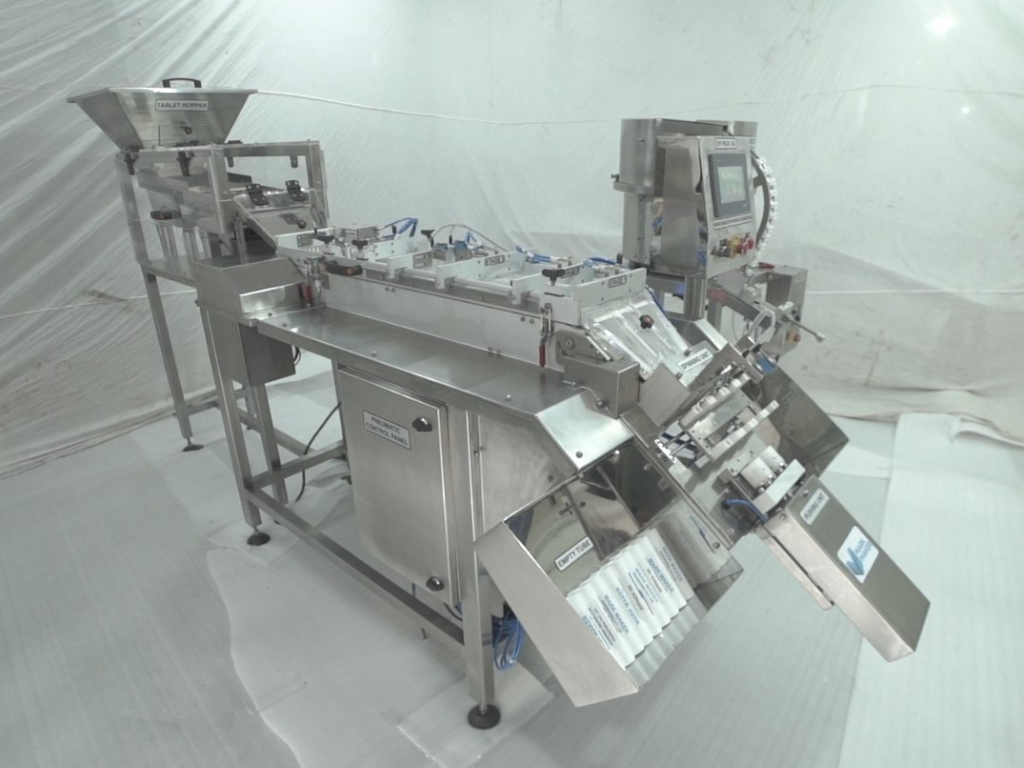

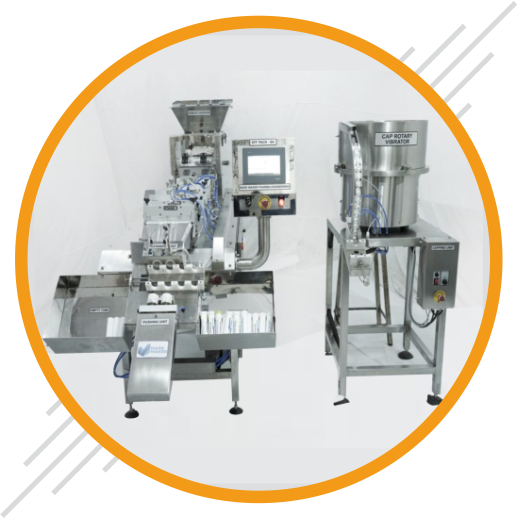

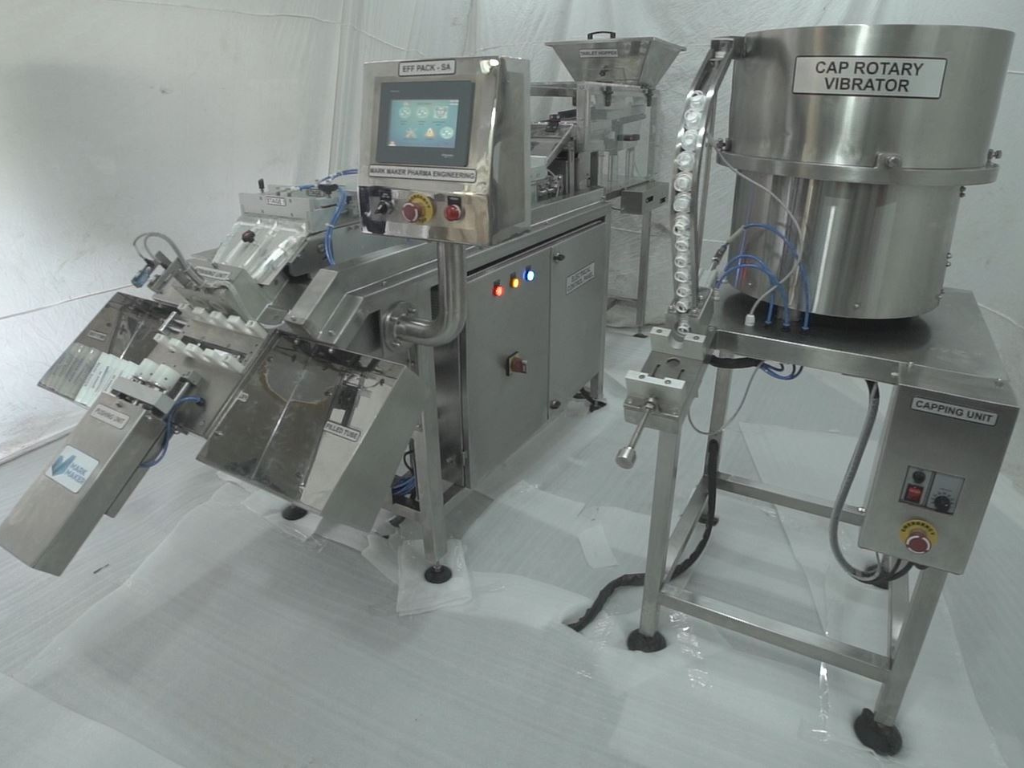

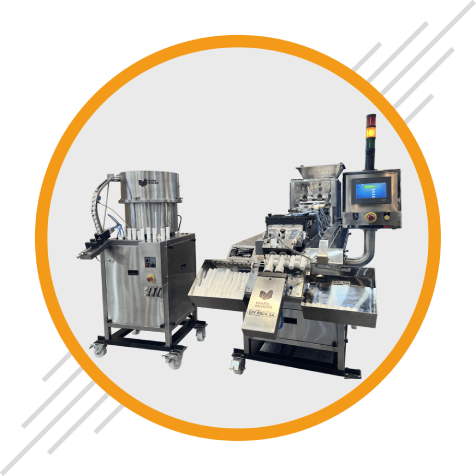

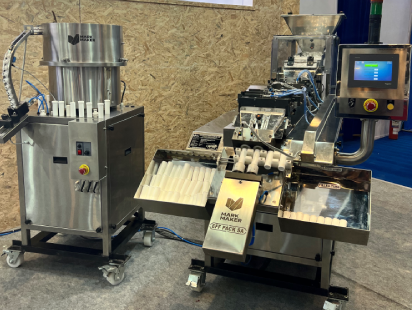

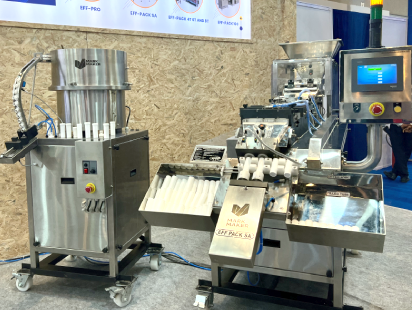

EFF-PACK SA
Designed for small batches, compact places.
A unique design where tablets are filled automatically and untouched to human keeping its essence as manufactured.
Max. 1,00,000 tablets per shift.
BEST IN CLASS TECHNOLOGY

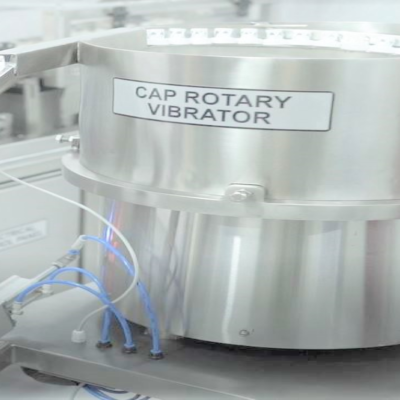

- Rotary feeding principle to ensure no tablet breaking.
- Easy switchover of various diameter tablets, effectively less than 30 minutes only.

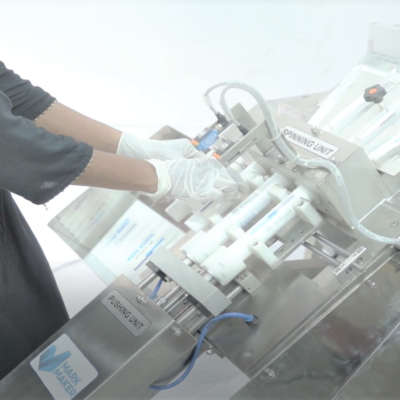

- Feeding 2 tubes at a time to avoid manual errors.

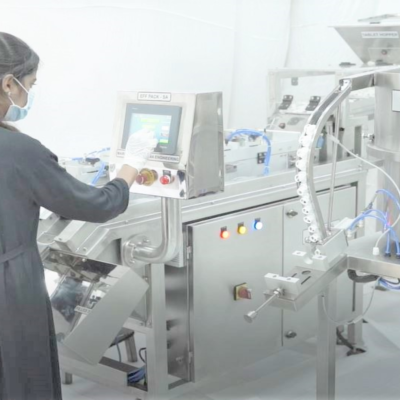

- A modern PLC to control and monitor complete process.
technical specifications
Capacity: | up to 1,00,000 tablets per shift |
|---|---|
Filling Speed: | 10 to 12 tubes per minute |
Packaging Type: | Polypropylene |
Machine Type: | Semi Automatic |
Machine connecting load: | 5 KW |
Machine weight: | 500 Kgs |
Tube length handled: | 80 to 180 mm |
Tablet diameter: | 18 to 30 mm |
Tablet Thickness: | 4 to 8 mm |

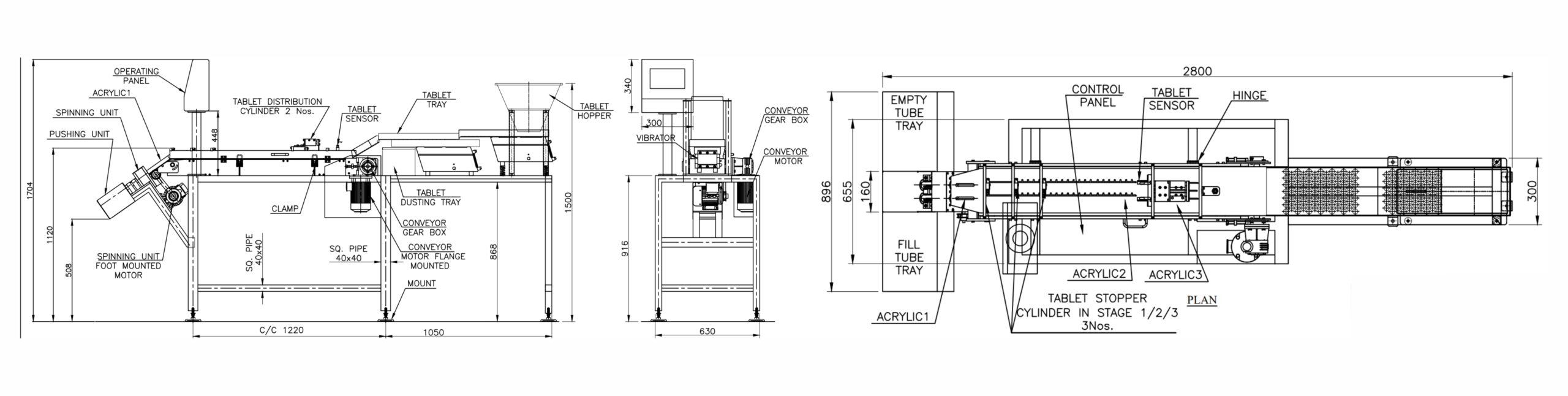

MACHINE LAYOUT
